SoQtComponent Class Reference

The SoQtComponent class is the base class for all GUI components. More...

#include <Inventor/Qt/SoQtComponent.h>

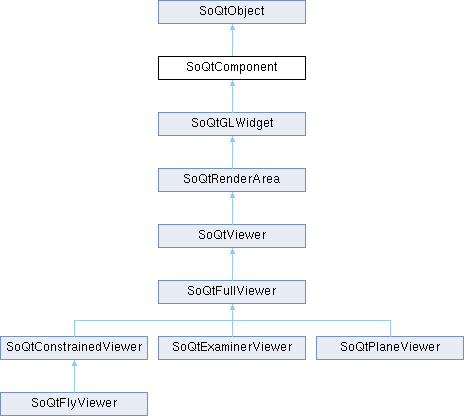

Inheritance diagram for SoQtComponent:

Public Member Functions
virtual	~SoQtComponent ()
QWidget *	getBaseWidget (void) const
const char *	getClassName (void) const
const char *	getIconTitle (void) const
QWidget *	getParentWidget (void) const
QWidget *	getShellWidget (void) const
SbVec2s	getSize (void) const
const char *	getTitle (void) const
QWidget *	getWidget (void) const
const char *	getWidgetName (void) const
virtual void	hide (void)
SbBool	isFullScreen (void) const
SbBool	isTopLevelShell (void) const
SbBool	isVisible (void)
virtual void	setComponentCursor (const SoQtCursor &cursor)
SbBool	setFullScreen (const SbBool onoff)
void	setIconTitle (const char *const title)
void	setSize (const SbVec2s size)
void	setTitle (const char *const title)
void	setWindowCloseCallback (SoQtComponentCB *const func, void *const user=NULL)
virtual void	show (void)
Public Member Functions inherited from SoQtObject
virtual SoType	getTypeId (void) const =0
SbBool	isOfType (SoType type) const

Static Public Member Functions
static SoQtComponent *	getComponent (QWidget *widget)
static void	initClasses (void)
static void	setWidgetCursor (QWidget *w, const SoQtCursor &cursor)
Static Public Member Functions inherited from SoQtObject
static SoType	getClassTypeId (void)
static void	init (void)
static void	initClass (void)

Protected Member Functions
	SoQtComponent (QWidget *const parent=NULL, const char *const name=NULL, const SbBool embed=TRUE)
void	addVisibilityChangeCallback (SoQtComponentVisibilityCB *const func, void *const user=NULL)
virtual void	afterRealizeHook (void)
virtual const char *	getDefaultIconTitle (void) const
virtual const char *	getDefaultTitle (void) const
virtual const char *	getDefaultWidgetName (void) const
void	registerWidget (QWidget *widget)
void	removeVisibilityChangeCallback (SoQtComponentVisibilityCB *const func, void *const user=NULL)
void	setBaseWidget (QWidget *widget)
void	setClassName (const char *const name)
virtual void	sizeChanged (const SbVec2s &size)
void	unregisterWidget (QWidget *widget)

Detailed Description

The SoQtComponent class is the base class for all GUI components.

Components in the SoQt component library all inherit this abstract base class. It provides basic methods for setting and querying about the relationship between the component object and its underlying Qt object(s).

Application programmers should not need to interface any code against this class, unless they want to extend the SoQt library in entirely new directions. For making new viewer components, for instance, other classes further down the inheritance hierarchy would be better suited for subclassing.

Note that the relationship between all SoQtComponent derived classes and Qt widgets is one of "has-A", not "is-A" – i.e. SoQtComponent contains a QWidget*, it doesn't derive from or subclass it.

Constructor & Destructor Documentation

~SoQtComponent()

SoQtComponent::~SoQtComponent ( )

virtual

Destructor.

SoQtComponent()

SoQtComponent::SoQtComponent ( QWidget *const parent = NULL, const char *const name = NULL, const SbBool embed = TRUE )

protected

This is a protected constructor, used only by derived classes.

The parent argument is the parent widget of the component. If you don't supply a parent, the main window (the one given to or returned from SoQt::init()) is used (and the embed argument is considered to be FALSE).

The name argument is the name of the component. If you don't supply one, the name will default to something, depending on the inheritance hierarchy.

The embed argument tells whether the component should be embedded in the parent widget or should create its own shell. This flag is only checked if the parent widget argument is specified (not NULL).

If you create a non-embedded component, the component will create its own shell, which will be a top level shell type. If you embed the component, the component will create a form widget type widget inside the parent widget, which you can get the handle of by calling SoQtComponent::getBaseWidget().

Member Function Documentation

addVisibilityChangeCallback()

void SoQtComponent::addVisibilityChangeCallback ( SoQtComponentVisibilityCB *const func, void *const user = NULL )

protected

Add a callback which will be called whenever the widget component changes visibility status (because of iconification or deiconification, for instance).

See also

removeVisibilityChangeCallback(), isVisible()

afterRealizeHook()

void SoQtComponent::afterRealizeHook ( void )

protectedvirtual

A function "hook" / callback invoked just after the window for the component has been realized.

Override this if you need specific initialization for your own component or viewer class to happen right after it has been made visible, but remember to call upwards in the inheritance hierarchy:

void
MyLittleViewer::afterRealizeHook(void)
{
  <superclass>::afterRealizeHook();
  // [own initialization here]
}

Reimplemented in SoQtRenderArea, SoQtExaminerViewer, SoQtFlyViewer, and SoQtPlaneViewer.

getBaseWidget()

QWidget * SoQtComponent::getBaseWidget

(

void

)

const

An SoQtComponent may be composed of any number of widgets in parent-children relationships in a tree structure with any depth. This method will return the root widget in that tree.

See also

setBaseWidget()

getClassName()

const char * SoQtComponent::getClassName

(

void

)

const

Returns class name of widget.

getComponent()

SoQtComponent * SoQtComponent::getComponent ( QWidget * widget )

static

Finds and returns the SoQtComponent corresponding to the given QWidget*, if any. If the widget does not seem to belong to any SoQtComponent, NULL will be returned.

getDefaultIconTitle()

const char * SoQtComponent::getDefaultIconTitle ( void ) const

protectedvirtual

This method returns the default icon title of the component.

It should be overridden by derived non-abstract classes so icons will get proper titles.

Reimplemented in SoQtRenderArea, SoQtExaminerViewer, SoQtFlyViewer, and SoQtPlaneViewer.

getDefaultTitle()

const char * SoQtComponent::getDefaultTitle ( void ) const

protectedvirtual

This method returns the default window caption string of the component.

It should be overridden by derived non-abstract classes so the window and pop-up menu will get a proper title.

Reimplemented in SoQtRenderArea, SoQtExaminerViewer, SoQtFlyViewer, and SoQtPlaneViewer.

getDefaultWidgetName()

const char * SoQtComponent::getDefaultWidgetName ( void ) const

protectedvirtual

This method returns the default name of a component widget class.

It should be overridden by derived non-abstract classes for the topmost widget in the component to have a proper name.

Reimplemented in SoQtRenderArea, SoQtExaminerViewer, SoQtFlyViewer, and SoQtPlaneViewer.

getIconTitle()

const char * SoQtComponent::getIconTitle

(

void

)

const

Returns the title the window has when iconified.

If an icon title has been set, that icon title is returned. If no icon title has been set, the default icon title is returned.

See also

setIconTitle(), isTopLevelShell()

getParentWidget()

QWidget * SoQtComponent::getParentWidget

(

void

)

const

Returns the widget which is the parent of (i.e. contains) this component's base widget.

See also

getWidget(), baseWidget(), isTopLevelShell()

getShellWidget()

QWidget * SoQtComponent::getShellWidget

(

void

)

const

This method returns the shell widget of the component, but only if it was created as a top level shell. NULL will be returned for embedded components.

(The top level shell is the desktop window which contains the component.)

To get the top level shell of embedded components, you can use the SoQt::getShellWidget() method.

See also

isTopLevelShell(), getWidget()

getSize()

SbVec2s SoQtComponent::getSize

(

void

)

const

Returns the component widget size.

The size that is returned is a cached size value, not a value fetched from the GUI system.

See also

setSize()

getTitle()

const char * SoQtComponent::getTitle

(

void

)

const

Returns the window title.

If a title has been set, that title will be returned. If no title has been set, the default title is returned.

See also

setTitle(), isTopLevelShell()

getWidget()

QWidget * SoQtComponent::getWidget

(

void

)

const

Returns a pointer to the component's window system widget.

See also

getShellWidget(), getParentWidget()

getWidgetName()

const char * SoQtComponent::getWidgetName

(

void

)

const

Returns name of the widget.

hide()

void SoQtComponent::hide ( void )

virtual

This will hide the widget.

See also

show(), isVisible()

initClasses()

void SoQtComponent::initClasses ( void )

static

This function initializes the type system for all the component classes. It is called indirectly for you when you call SoQt::init().

See also

SoQt::init(), SoQtDevice::initClasses()

isFullScreen()

SbBool SoQtComponent::isFullScreen

(

void

)

const

Returns whether this widget/component is in full screen mode or not.

isTopLevelShell()

SbBool SoQtComponent::isTopLevelShell

(

void

)

const

Returns TRUE if this component is a top level shell, i.e. it has a window representation on the desktop.

See also

getShellWidget()

isVisible()

SbBool SoQtComponent::isVisible

(

void

)

Returns visibility status on the widget. If any parents of this widget or this widget itself is hidden, returns FALSE.

Note that a widget which is just obscured by other windows on the desktop is not hidden in this sense, and TRUE will be returned.

See also

show(), hide()

registerWidget()

void SoQtComponent::registerWidget ( QWidget * widget )

protected

This method should be used by subclasses to register the widgets they set up from the underlying native toolkit, so they can be "reverse" mapped to the owner component.

Subclasses failing to register the widgets they use will cause the SoQtComponent::getComponent() method to fail with those widgets.

See also

unregisterWidget(), getComponent()

removeVisibilityChangeCallback()

void SoQtComponent::removeVisibilityChangeCallback ( SoQtComponentVisibilityCB *const func, void *const data = NULL )

protected

Remove one of the callbacks from the list of visibility notification callbacks.

See also

addVisibilityChangeCallback(), isVisible()

setBaseWidget()

void SoQtComponent::setBaseWidget ( QWidget * widget )

protected

Set the core widget for this SoQt component. It is important that subclasses get this correct, as the widget set here will be the widget returned from query methods.

See also

baseWidget()

setClassName()

void SoQtComponent::setClassName ( const char *const name )

protected

Set class name of component.

See also

getClassName(), componentClassName()

setComponentCursor()

void SoQtComponent::setComponentCursor ( const SoQtCursor & cursor )

virtual

Sets the cursor for this component.

Note: not part of the original SGI InventorXt API.

Reimplemented in SoQtFullViewer.

setFullScreen()

SbBool SoQtComponent::setFullScreen

(

const SbBool

onoff

)

Toggle full screen mode for this component, if possible.

Returns FALSE if operation failed. This might happen if the toolkit doesn't support attempts at making the component cover the complete screen or if the component is not a top level window.

setIconTitle()

void SoQtComponent::setIconTitle

(

const char *const

title

)

This method sets the title of the icon representation of the window.

The title will appear on the window icon, if the component manages its own window.

See also

getIconTitle(), setTitle(), isTopLevelShell()

setSize()

void SoQtComponent::setSize

(

const SbVec2s

size

)

Resize the component widget.

The method assumes the caller knows what he is doing.

See also

getSize()

setTitle()

void SoQtComponent::setTitle

(

const char *const

title

)

Set the window title of this component. The title will appear on the window title bar, if the component manages its own window.

Note that there is one peculiarity to be aware of if you are using the non-commercial version of Qt: only window titles with the substring "Qt" in them are allowed (!), and attempts to set a window title without this substring will simply be ignored.

See also

getTitle(), setIconTitle(), isTopLevelShell()

setWidgetCursor()

void SoQtComponent::setWidgetCursor ( QWidget * w, const SoQtCursor & cursor )

static

Set cursor for a native widget in the underlying toolkit.

Note: not part of the original SGI InventorXt API.

setWindowCloseCallback()

void SoQtComponent::setWindowCloseCallback	(	SoQtComponentCB *const	func,
		void *const	data = NULL )

Set up a callback function to use when the component gets closed. A component must be a top level shell for this to have any effect.

For top level shells with no close callback set, the window will simply be hidden. The typical action to take in the callback would be to delete the component.

See also

isTopLevelShell()

show()

void SoQtComponent::show ( void )

virtual

This will show the widget, de-iconifying and raising it if necessary.

See also

hide(), isVisible()

This function must be called by subclasses after the component's widget has been otherwise initialized.

sizeChanged()

void SoQtComponent::sizeChanged ( const SbVec2s & size )

protectedvirtual

Called internally from within the SoQt library when the widget embedded in a component changes its size, which is usually triggered by end-user interaction.

This method is then invoked to notify the component that the size has changed. It is called from the top and all the way down to the bottom, the size being adjusted to take into account extra decorations having been added at each level in the component class hierarchy.

Reimplemented in SoQtGLWidget, SoQtRenderArea, SoQtFullViewer, and SoQtViewer.

unregisterWidget()

void SoQtComponent::unregisterWidget ( QWidget * widget )

protected

Remove a previously registered native toolkit widget from the widget-to-component mappings used by SoQtComponent::getComponent().

See also

registerWidget()

---

The documentation for this class was generated from the following files:

• SoQtComponent.h
• SoQtComponentCommon.cpp
• SoQtComponent.cpp
