Render one orthogonal slice of the volume data. More...

#include <VolumeViz/nodes/SoOrthoSlice.h>

Inheritance diagram for SoOrthoSlice:

Public Types
enum	AlphaUse { ALPHA_AS_IS , ALPHA_OPAQUE , ALPHA_BINARY }

enum	Axis { X = 0 , Y , Z }

enum	ClippingSide { FRONT , BACK }

enum	Interpolation { NEAREST , LINEAR }

Public Member Functions
virtual SbBool	affectsState (void) const

Static Public Member Functions
static void	initClass (void)

Public Attributes
SoSFEnum	alphaUse

SoSFNode	alternateRep

SoSFEnum	axis

SoSFBool	clipping

SoSFEnum	clippingSide

SoSFEnum	interpolation

SoSFUInt32	sliceNumber

Protected Member Functions
virtual void	computeBBox (SoAction *action, SbBox3f &box, SbVec3f &center)

virtual void	doAction (SoAction *action)

virtual void	generatePrimitives (SoAction *action)

virtual void	GLRender (SoGLRenderAction *action)

virtual void	rayPick (SoRayPickAction *action)

virtual SbBool	readInstance (SoInput *in, unsigned short flags)

virtual void	write (SoWriteAction *action)

Detailed Description

Render one orthogonal slice of the volume data.

Insert a node of this type after an SoVolumeData node in the scene graph to render a single, axis-aligned slice from the full volume data set.

Here is a simple example, in the form of an iv-file:

#Inventor V2.1 ascii

SoVolumeData { fileName "ENGINE.VOL" }
SoTransferFunction { predefColorMap TEMPERATURE }

SoOrthoSlice { sliceNumber 0 }

Translation { translation 5 0 0 }

SoOrthoSlice { sliceNumber 10 }

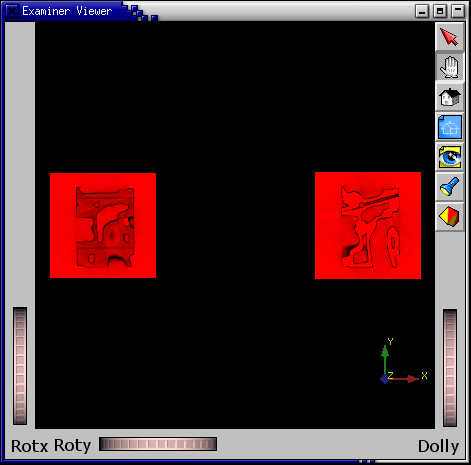

Which will produce something like this when loaded into an examiner viewer:

Rendering of two ortho slices

See also: SoVolumeRender

Member Data Documentation

◆ alphaUse

SoSFEnum SoOrthoSlice::alphaUse

Determines how to handle the alpha values of the slice. If set to SoOrthoSlice::ALPHA_AS_IS, slice will be rendered as a regular texture. When set to SoOrthoSlice::ALPHA_BINARY, all texels with alpha != 0 will become opaque. If set to SoOrthoSlice::ALPHA_OPAQUE, all texels will be opaque, independent of original alpha value.

Default value is SoOrthoSlice::ALPHA_BINARY.

◆ alternateRep

SoSFNode SoOrthoSlice::alternateRep

NOTE: support for this field not yet implemented in SIM Voleon.

Since: SIM Voleon 2.0

◆ axis

SoSFEnum SoOrthoSlice::axis

Determines which plane the orthonormal slice will show. The plane will be the one perpendicular to the axis, i.e. if this field is set to SoOrthoSlice::Z, the slice will lay in the X-Y plane.

Default value is SoOrthoSlice::Z.

◆ sliceNumber

SoSFUInt32 SoOrthoSlice::sliceNumber

Determines where the slice will be made through the volume.

Default value is 0.

The documentation for this class was generated from the following files:

SoOrthoSlice.h
OrthoSlice.cpp
