SoShaderParameterArray2f Class Reference

The SoShaderParameterArray2f class is used to define a two-dimensional floating point array as shader parameter. More...

#include <Inventor/nodes/SoShaderParameter.h>

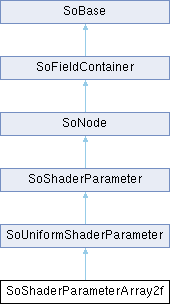

Inheritance diagram for SoShaderParameterArray2f:

Public Member Functions
SoType	getTypeId (void) const override
void	updateParameter (SoGLShaderObject *shaderObject) override
	Updates the shader parameter in the OpenGL state with the content of the value field.
Public Member Functions inherited from SoUniformShaderParameter
SoType	getTypeId (void) const override
Public Member Functions inherited from SoNode
virtual SoNode *	addToCopyDict (void) const
virtual SbBool	affectsState (void) const
virtual void	audioRender (SoAudioRenderAction *action)
virtual void	callback (SoCallbackAction *action)
virtual SoNode *	copy (SbBool copyconnections=FALSE) const
void	copyContents (const SoFieldContainer *from, SbBool copyconnections) override
SoFieldContainer *	copyThroughConnection (void) const override
virtual void	doAction (SoAction *action)
virtual void	getBoundingBox (SoGetBoundingBoxAction *action)
virtual SoChildList *	getChildren (void) const
virtual void	getMatrix (SoGetMatrixAction *action)
SbUniqueId	getNodeId (void) const
NodeType	getNodeType (void) const
virtual void	getPrimitiveCount (SoGetPrimitiveCountAction *action)
virtual void	GLRender (SoGLRenderAction *action)
virtual void	GLRenderBelowPath (SoGLRenderAction *action)
virtual void	GLRenderInPath (SoGLRenderAction *action)
virtual void	GLRenderOffPath (SoGLRenderAction *action)
virtual void	grabEventsCleanup (void)
virtual void	grabEventsSetup (void)
virtual void	handleEvent (SoHandleEventAction *action)
SbBool	isOverride (void) const
void	notify (SoNotList *l) override
virtual void	pick (SoPickAction *action)
virtual void	rayPick (SoRayPickAction *action)
virtual void	search (SoSearchAction *action)
void	setNodeType (const NodeType type)
void	setOverride (const SbBool state)
void	startNotify (void) override
virtual void	write (SoWriteAction *action)
void	writeInstance (SoOutput *out) override
Public Member Functions inherited from SoFieldContainer
void	addWriteReference (SoOutput *out, SbBool isfromfield=FALSE) override
void	copyFieldValues (const SoFieldContainer *container, SbBool copyconnections=FALSE)
SbBool	enableNotify (const SbBool flag)
SbBool	fieldsAreEqual (const SoFieldContainer *container) const
void	get (SbString &fielddata)
void	get (SbString &fielddata, SoOutput *out)
virtual int	getAllFields (SoFieldList &l) const
virtual SoField *	getEventIn (const SbName &name) const
virtual SoField *	getEventOut (const SbName &name) const
virtual SoField *	getField (const SbName &name) const
SbBool	getFieldName (const SoField *const field, SbName &name) const
virtual int	getFields (SoFieldList &l) const
virtual void	getFieldsMemorySize (size_t &managed, size_t &unmanaged) const
SbBool	getIsBuiltIn (void) const
void *	getUserData (void) const
SbBool	hasDefaultValues (void) const
SbBool	isNotifyEnabled (void) const
SbBool	set (const char *const fielddata)
SbBool	set (const char *fielddata, SoInput *input)
void	setToDefaults (void)
void	setUserData (void *userdata) const
virtual SbBool	validateNewFieldValue (SoField *field, void *newval)
Public Member Functions inherited from SoBase
void	addAuditor (void *const auditor, const SoNotRec::Type type)
void	assertAlive (void) const
const SoAuditorList &	getAuditors (void) const
virtual SbName	getName (void) const
int32_t	getRefCount (void) const
SbBool	isOfType (SoType type) const
	Returns TRUE if the type of this object is either of the same type or inherited from type.
void	ref (void) const
void	removeAuditor (void *const auditor, const SoNotRec::Type type)
virtual void	setName (const SbName &newname)
SbBool	shouldWrite (void)
void	touch (void)
void	unref (void) const
void	unrefNoDelete (void) const

Static Public Member Functions
static SoType	getClassTypeId (void)
static void	initClass ()
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.
Static Public Member Functions inherited from SoUniformShaderParameter
static SoType	getClassTypeId (void)
static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.
Static Public Member Functions inherited from SoShaderParameter
static SoType	getClassTypeId (void)
static void	initClass ()
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.
Static Public Member Functions inherited from SoNode
static void	audioRenderS (SoAction *action, SoNode *node)
static void	callbackS (SoAction *action, SoNode *node)
static int	getActionMethodIndex (const SoType type)
static void	getBoundingBoxS (SoAction *action, SoNode *node)
static SoNode *	getByName (const SbName &name)
static int	getByName (const SbName &name, SoNodeList &l)
static SoType	getClassTypeId (void)
static uint32_t	getCompatibilityTypes (const SoType &nodetype)
static void	getMatrixS (SoAction *action, SoNode *node)
static SbUniqueId	getNextNodeId (void)
static void	getPrimitiveCountS (SoAction *action, SoNode *node)
static void	GLRenderS (SoAction *action, SoNode *node)
static void	handleEventS (SoAction *action, SoNode *node)
static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.
static void	initClasses (void)
static void	pickS (SoAction *action, SoNode *node)
static void	rayPickS (SoAction *action, SoNode *node)
static void	searchS (SoAction *action, SoNode *node)
static void	writeS (SoAction *action, SoNode *node)
Static Public Member Functions inherited from SoFieldContainer
static void	addCopy (const SoFieldContainer *orig, const SoFieldContainer *copy)
static SoFieldContainer *	checkCopy (const SoFieldContainer *orig)
static void	cleanupClass (void)
static void	copyDone (void)
static SoFieldContainer *	findCopy (const SoFieldContainer *orig, const SbBool copyconnections)
static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.
static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.
static void	initCopyDict (void)
Static Public Member Functions inherited from SoBase
static void	addName (SoBase *const base, const char *const name)
static SbBool	connectRoute (SoInput *input, const SbName &fromnodename, const SbName &fromfieldname, const SbName &tonodename, const SbName &tofieldname)
static void	decrementCurrentWriteCounter (void)
static SoType	getClassTypeId (void)
	This static method returns the SoType object associated with objects of this class.
static SoBase *	getNamedBase (const SbName &name, SoType type)
static int	getNamedBases (const SbName &name, SoBaseList &baselist, SoType type)
static SbBool	getTraceRefs (void)
static void	incrementCurrentWriteCounter (void)
static void	initClass (void)
	Sets up initialization for data common to all instances of this class, like submitting necessary information to the Coin type system.
static SbBool	read (SoInput *input, SoBase *&base, SoType expectedtype)
static SbBool	readRoute (SoInput *input)
static void	removeName (SoBase *const base, const char *const name)
static void	setInstancePrefix (const SbString &c)
static void	setTraceRefs (SbBool trace)

Public Attributes
SoMFVec2f	value
Public Attributes inherited from SoShaderParameter
SoSFInt32	identifier
SoSFString	name

Protected Member Functions
const SoFieldData *	getFieldData (void) const override
Protected Member Functions inherited from SoUniformShaderParameter
void	ensureParameter (SoGLShaderObject *shader)
const SoFieldData *	getFieldData (void) const override
SoGLShaderParameter *	getGLShaderParameter (const uint32_t cachecontext)
Protected Member Functions inherited from SoShaderParameter
	SoShaderParameter ()
virtual	~SoShaderParameter ()
Protected Member Functions inherited from SoNode
	SoNode (void)
virtual	~SoNode ()
SbBool	readInstance (SoInput *in, unsigned short flags) override
Protected Member Functions inherited from SoFieldContainer
	SoFieldContainer (void)
virtual	~SoFieldContainer ()
Protected Member Functions inherited from SoBase
	SoBase (void)
virtual	~SoBase ()
virtual SoNotRec	createNotRec (void)
virtual void	destroy (void)
virtual const char *	getFileFormatName (void) const
SbBool	hasMultipleWriteRefs (void) const
void	writeFooter (SoOutput *out) const
SbBool	writeHeader (SoOutput *out, SbBool isgroup, SbBool isengine) const

Static Protected Member Functions
static const SoFieldData **	getFieldDataPtr (void)
Static Protected Member Functions inherited from SoUniformShaderParameter
static const SoFieldData **	getFieldDataPtr (void)
Static Protected Member Functions inherited from SoShaderParameter
static const SoFieldData **	getFieldDataPtr (void)
Static Protected Member Functions inherited from SoNode
static const SoFieldData **	getFieldDataPtr (void)
static int	getNextActionMethodIndex (void)
static void	incNextActionMethodIndex (void)
static void	setCompatibilityTypes (const SoType &nodetype, const uint32_t bitmask)
static void	setNextActionMethodIndex (int index)
Static Protected Member Functions inherited from SoBase
static uint32_t	getCurrentWriteCounter (void)
static void	staticDataLock (void)
static void	staticDataUnlock (void)

Additional Inherited Members
Public Types inherited from SoNode
enum	NodeType {   INVENTOR = 0x0000 , VRML1 = 0x0001 , VRML2 = 0x0002 , INVENTOR_1 = 0x0004 ,   INVENTOR_2_0 = 0x0008 , INVENTOR_2_1 = 0x0010 , INVENTOR_2_5 = 0x0020 , INVENTOR_2_6 = 0x0040 ,   COIN_1_0 = 0x0080 , COIN_2_0 = 0x0100 , EXTENSION = 0x0200 , COIN_2_2 = 0x0400 ,   COIN_2_3 = 0x0800 , COIN_2_4 = 0x1000 , INVENTOR_5_0 = 0x2000 , COIN_2_5 = 0x4000 ,   COIN_3_0 = 0x8000 , INVENTOR_6_0 = 0x10000 , COIN_4_0 = 0x20000 }
Protected Types inherited from SoBase
enum	BaseFlags { IS_ENGINE = 0x01 , IS_GROUP = 0x02 }
Protected Attributes inherited from SoNode
SbUniqueId	uniqueId
Protected Attributes inherited from SoFieldContainer
SbBool	isBuiltIn
Static Protected Attributes inherited from SoNode
static int	nextActionMethodIndex = 0
static SbUniqueId	nextUniqueId = 1

Detailed Description

The SoShaderParameterArray2f class is used to define a two-dimensional floating point array as shader parameter.

Member Function Documentation

getClassTypeId()

SoType SoShaderParameterArray2f::getClassTypeId ( void )

static

This static method returns the SoType object associated with objects of this class.

getFieldData()

const SoFieldData * SoShaderParameterArray2f::getFieldData ( void ) const

overrideprotectedvirtual

Returns a pointer to the class-wide field data storage object for this instance. If no fields are present, returns NULL.

Reimplemented from SoShaderParameter.

getFieldDataPtr()

const SoFieldData ** SoShaderParameterArray2f::getFieldDataPtr ( void )

staticprotected

This API member is considered internal to the library, as it is not likely to be of interest to the application programmer.

Returns the SoFieldData class which holds information about fields in this node.

getTypeId()

SoType SoShaderParameterArray2f::getTypeId ( void ) const

overridevirtual

Returns the type identification of an object derived from a class inheriting SoBase. This is used for runtime type checking and "downward" casting.

Reimplemented from SoShaderParameter.

updateParameter()

void SoShaderParameterArray2f::updateParameter ( SoGLShaderObject * shaderObject )

overridevirtual

Updates the shader parameter in the OpenGL state with the content of the value field.

Implements SoUniformShaderParameter.

Member Data Documentation

value

SoMFVec2f SoShaderParameterArray2f::value

The shader parameter value.

---

The documentation for this class was generated from the following files:

• SoShaderParameter.h
• SoShaderParameter.cpp
